Alarm System Programming

Q1: Select RF Sensor - enter zone number you want to program)
Select RF sensor 1 type (01 for doors/windows; 10 for motions; 03 for glassbreaks)
Select RF sensor 1equipment code (select right arrow to get to correct part)
Enter RF sensor 1 serial number (7 digits) (either enter 7 digits or press SHIFT LEARN and learn in the sensor with either a magnet for doors, or by tampering the sensor)
Select RF sensor 1 equipment age (0 to 1) (leave it as new for new equipment)
Select RF sensor 1 loop number (1 to 3) (1= motions, glassbreaks, panic buttons, door contacts with a wire attached. 2 = door contacts with just a magnet.)
Select RF sensor 1 dialer delay (0 to 1) (change to 0 except in Texas)

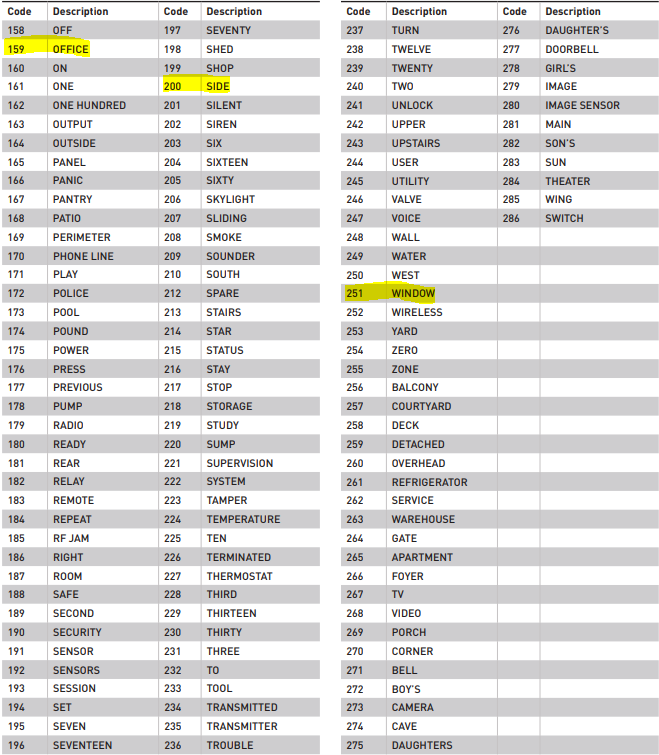

Select RF sensor 1 voice descriptor. (press insert and a 3 digit number that represents the word you want. Insert for the next word until finished)
Select RF sensor 1 reports (0 to 1) leave as 1
Select RF sensor 1 supervised (0 to 1) leave as 1
Select RF sensor 1 chime (00 to 13) leave as 00 unless customer wants chime on their door or window
Summary screen. Move onto “next zone” or panel programming if finished

Program all sensors before doing panel programming
